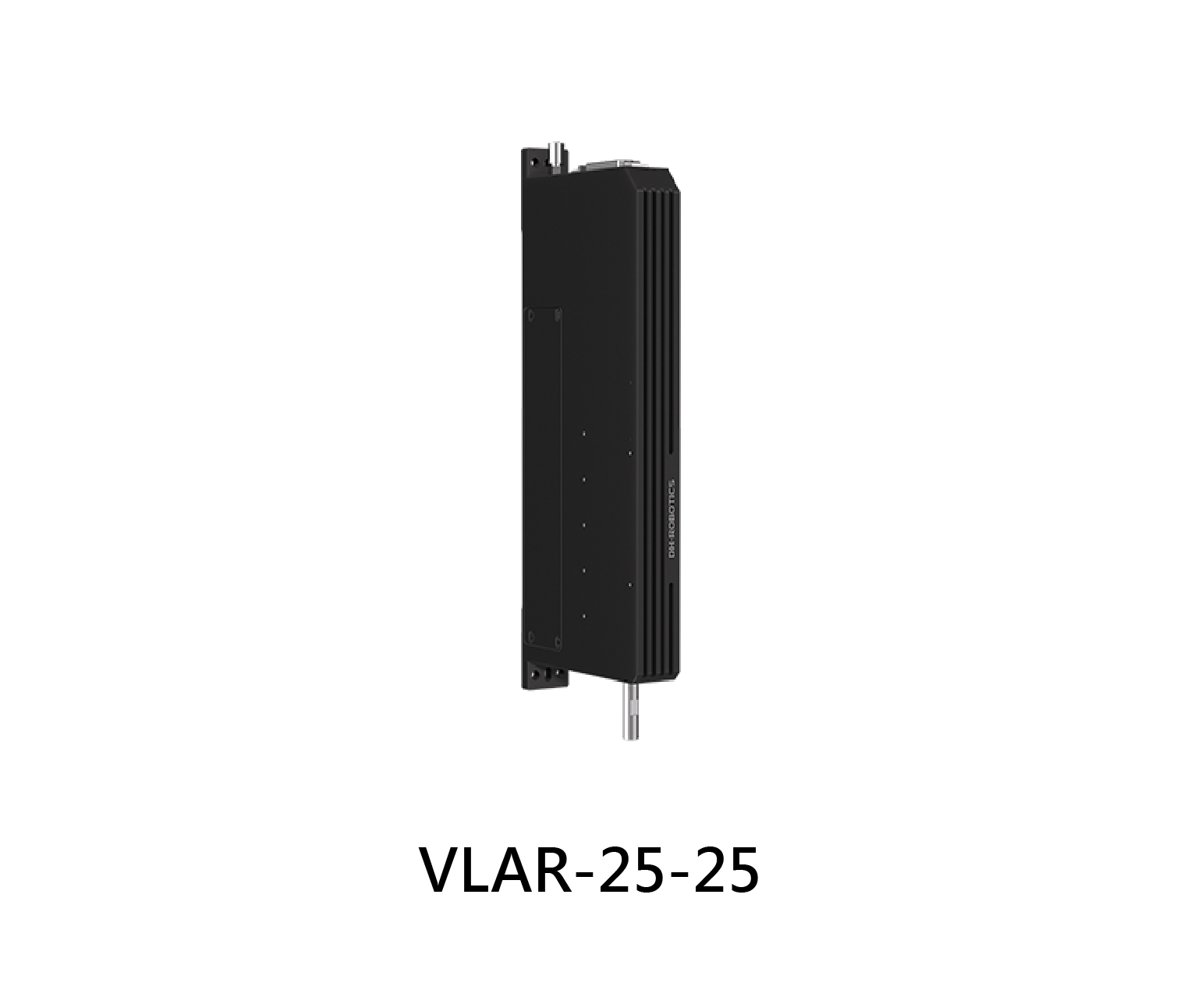

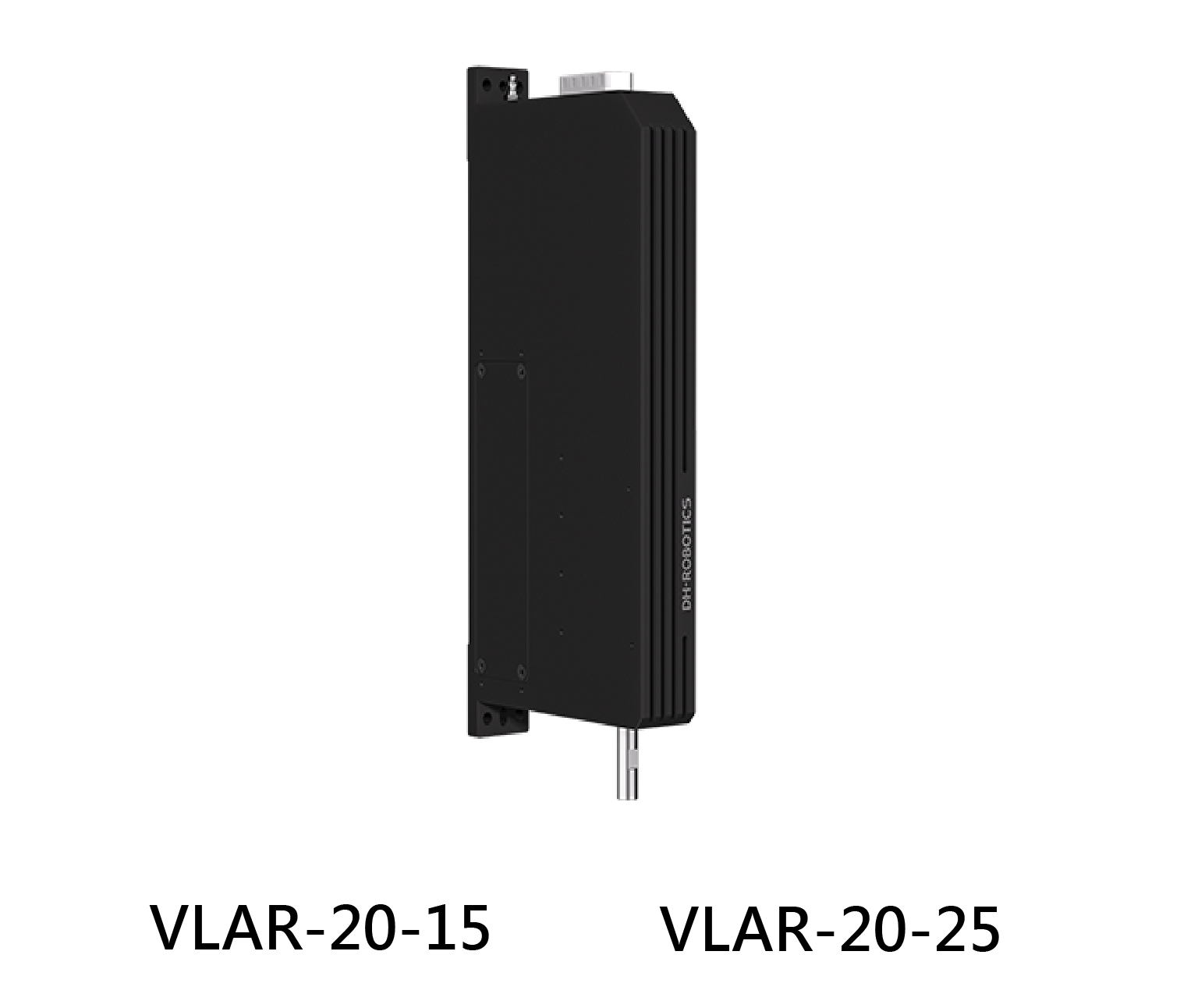

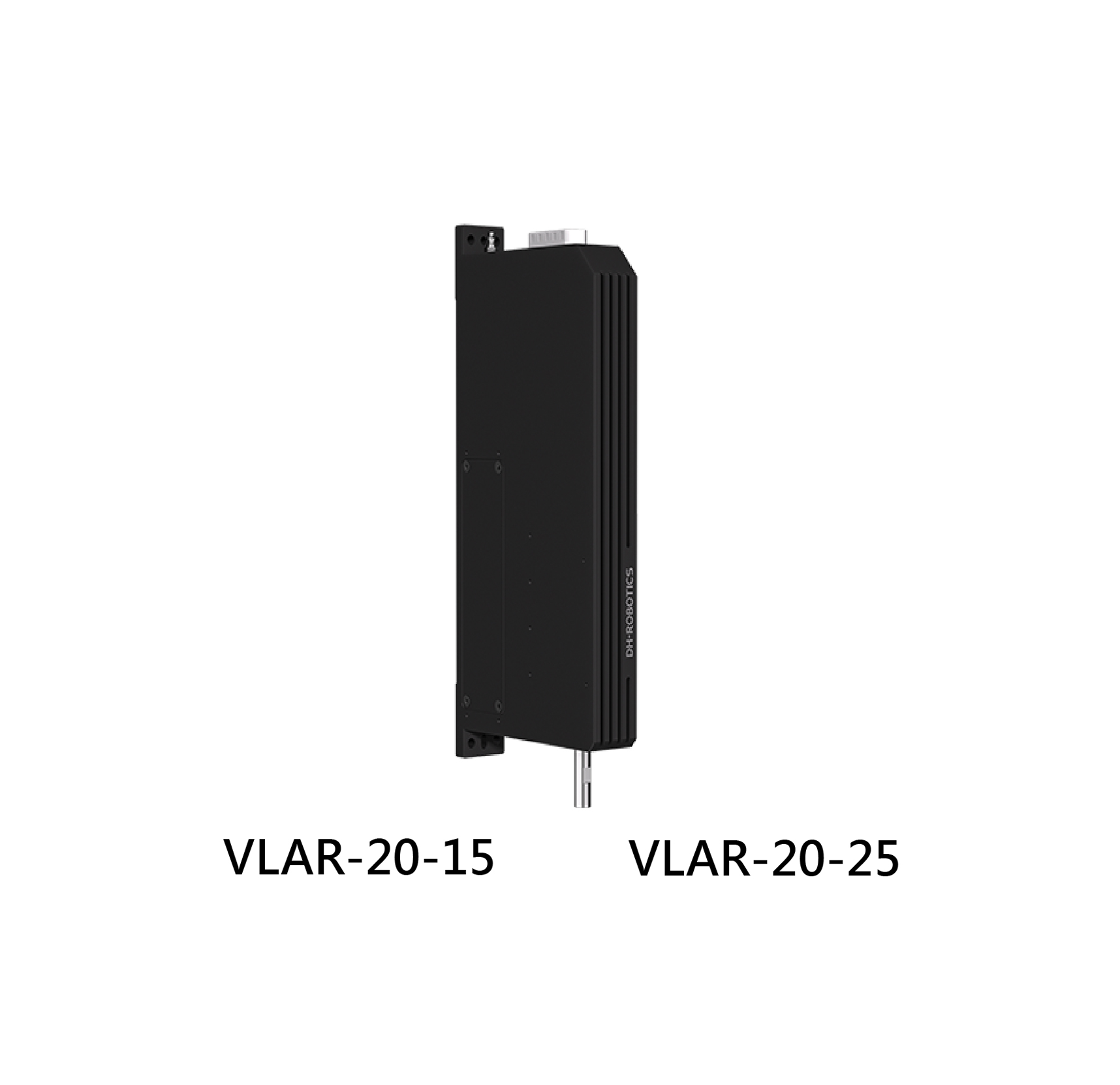

VLAR-20-15(Magnetic encoder)(Optical encoder)/VLAR-20-25(Optical/Magnetic encoder)/VLAR-25-25(Magnetic encoder)
The VLAR Series rotary actuator could provide precise Z-axis linear and rotational motions during high-speed motions. The speed, thrust, and position parameters are adjustable, which can achieve complex motions that require high-frequency and high-precision.
The VLAR Series rotary actuator is compact, light and thin. With the hollow shaft design, it support pick and place tasks. The intelligent soft landing function relies on precision force control to protect the pick and place work-pieces. The Z-axis has a built-in spring to prevent the axis from powering down during vertical operation.
Regarding this product, the stroke resolution is up to 0.5 μm, the rotary position resolution is 0.005°, and the thrust repeatability is within ±3 g. With high-quality guide rail-levelrelated components, it has a service life of up to 100 million cycles, and it is stable and durable.
